You must have compatible Map Viewing Software to view Mapping - please keep reading for further information.

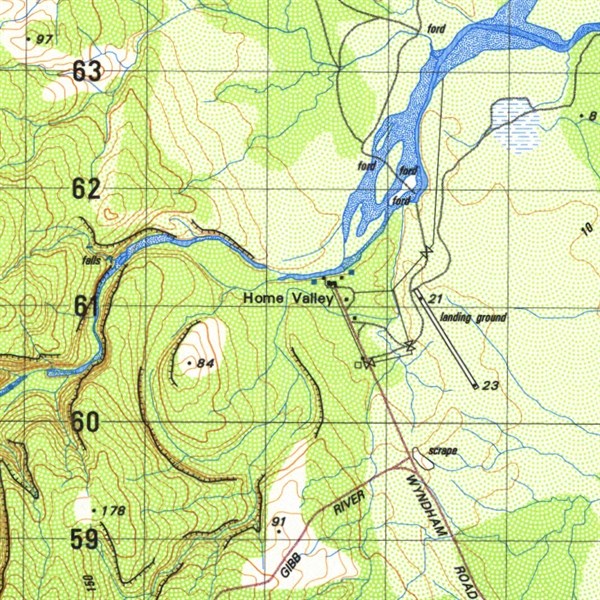

The map images on the DVD are digital scans of the Defence Departments 1:50,000 topographical map series that covers most of the Kimberley region of north-west W.A, in addition to major offshore islands and reefs.
The paper maps have been scanned at 200dpi and the resulting images supplied on the DVD in ECW format and can be viewed with the OziExplorer (full version), TrackRanger, TwoNav and a range of GPS/GIS mapping programs (not included). Each map sheet generally covers an area of 15' longitude by 15' latitude which corresponds to approximately 25km x 25km. Some combined sheets cover a slightly larger area.
The date when the original maps were first printed varies considerably but ranges from about the early 1980’s to 2003. The maps are the most detailed available in digital raster format over this entire area and show all significant natural features (lakes, swamps, rivers, creeks, hills, coastal features etc.) along with cultural features (tracks, roads, highways, towns, dams etc. ) present at the time the data was collected for use to draft the maps. Relief is portrayed by contours (10m intervals) and spot heights in metres; populated places symbolised; roads classified by surface and width; railways shown; drainage and vegetation symbolised; foreshore and offshore features shown.
The Maps on the DVD has been specifically created for use with the popular GPS Mapping programs such as OziExplorer, TrackRanger and TwoNav. OziExplorer calibration files are included but as the calibration information is also incorporated into the ecw files, users can start using the maps immediately with any compatible program. Digital elevation data is also supplied on the DVD. This information can be used to create 3D map images using OziExplorer3D or other suitable software. Elevation data is at 3 sec (90m) intervals and is the most accurate available over this area. A place name database for use with OziExplorer is also provided allowing users to search for the location of named features that occur anywhere in W.A. The maps are also suitable for use with a range of GIS programs including ArcView and have been re-projected to GDA94 (Geodetic) so as to match the current Australian standard.
