Water Tank
Water storage is a critical issue for all four wheel drivers. Not only do you need to carry large amounts of fresh water, you also need 2 alternate supplies in case of contamination from one source. We suggest a couple of small plastic jerry cans for backup but for the main supply, the best water carrying solution is a stainless steel water tank. In this article we look at the major issues related to water storage and discuss how you can find the ideal solution for your needs.
Article By: Michelle Jacka Updated: 10 Jun 2008
Advertisement
Water Is Important
Installation and Operation
Water Storage Solutions
Article Feedback
Stainless Steel Tanks
Related Pages
In this Article
Water Is Important
Click Image to Enlarge
Every time you take your 4WD off-road you must be self-sufficient by carrying your own reliable source of drinking water. You must ensure that you carry at least 2 litres of drinking water per person per day as well as additional
cooking
and washing water requirements. In fact we also try to ensure that we always have a about 10 litres of spare water in case the radiator needs to be refilled. This could mean you require 40 - 100L of water storage.
Water Storage Solutions
Space is always a premium and the most efficient and safe storage of your water is important. Remember, the roof is not a good place to store water due to the increased weight above the vehicle's standard centre of gravity. Water should be stored low in the vehicle.

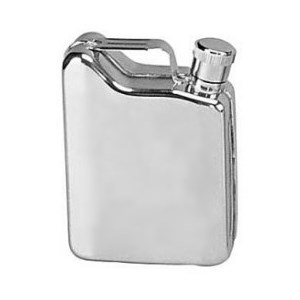

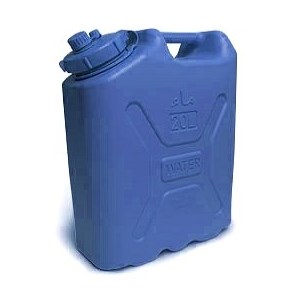

To minimise risk of possible water contamination and to distribute the weight load of storing water, it is best to have at least 2 water storage solutions eg. drinking water in a stainless steel tank plus washing water in plastic jerry cans. Water in plastic can sometimes take on a strange taste and take on the smell of the plastic container, especially if you stored it for prolonged periods.
Click Image to Enlarge
Click Image to Enlarge
Stainless Steel Tanks
There are two options for mounting stainless tanks - underbody tanks and internal mounted water tanks. Some manufacturers offer a specific design to fit in a standard location. Others are capable of offering a customised designed using the latest technology to design the most suitable shape for a specific vehicle.
Design and Construction
Water tanks need to be fully internally baffled and should have an expansion chamber incorporated in the design of the tank to ensure sloshing noises and extremes of temperature do not make the unit impractical. Each individual tank should be pressure tested by the manufacturer to ensure there are no leaks in the welds.
Practicalities

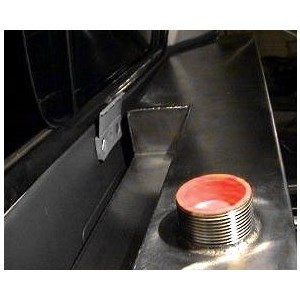

Look for practicalities in filling your water tank. Is a hose required or can a funnel be used to transfer water from, say a bucket, to the tank and if so is the height and access practical for you to do this?

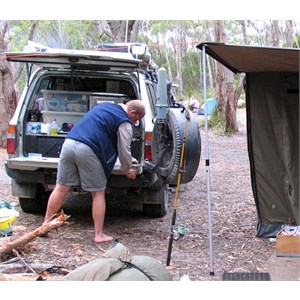

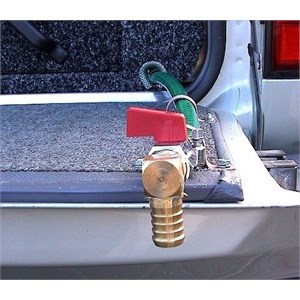

Likewise, look for practicalities in using your water supply. How easily can you drain a quick cup of water or wash your hands? Does the tank require a pump or power supply or will it work on gravity feed? How secure is the shut-off valve and can you obtain and carry spare parts? How will you know the level of water left in your tank? Is there a level gauge? Does the tank fully drain?
Click Image to Enlarge
Click Image to Enlarge
Installation and Operation
Departure angle must not be affected by installation of an under-body water tank. Most vehicles have some recess that are suitable for small tank installations, such as under the passenger seat area, in a spare wheel bay or in the rear just behind the axles.
Every make/model of vehicle will have its own issues when it comes to selecting the most practical location to install a water tank. Firstly, see what standard tanks are available for your vehicle. If there are any complications you can go direct to one of the tank manufacturers for a custom-design.
Click Image to Enlarge
Example - 80 Series Toyota Landcruiser

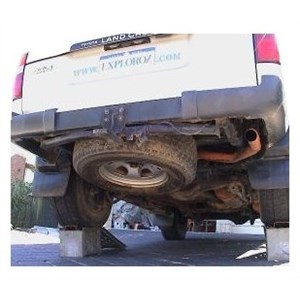

Typically, the spare wheel bay under the body of the vehicle is used for water storage and some tanks. These tanks are available for this model of vehicle and are specifically intended for that location. However, the spare wheel bay is also the ideal place to install a long-range fuel tank. Unfortunately in this case, there’s only one underbody option left for water storage - being a small recess under the passenger seat area. The limitation being that only a small tank of approximately 30L will fit here.
Now generally, a 40L tank contains just enough water for 2 adults to last a couple of days whilst
camping
in the bush. If you were to take into account the water needed for drinking, personal cleaning and hygiene,
cooking
and the minimal washing of dishes, you can imagine how it all adds up. That said, it may be a better option to consider a larger tank such as a 65 Litre water tank.
Internal Water Tank

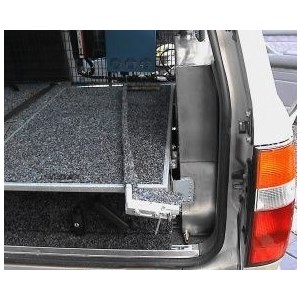

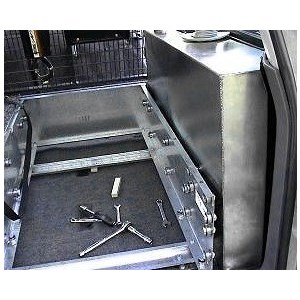

Opting for a larger tank requires more thought on another installation area of the vehicle. A good option is to install an internal stainless steel water tank. Many manufacturers offer a standard internal design to suit most makes/models of popular 4WDs such as the 80 Series Landcruiser. Please note however, that if you have any storage drawers or cargo barriers, then you may need to work with a manufacturer to design a custom made water tank.
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Article Feedback
If you wish to Send Feedback please
Logon Now
What Others have Posted
Fairlane : 21 Sep 08 19:17
Hi all, I am wanting to put a water tank under my 98 troopy. looks ...
Hi all,
I am wanting to put a
water tank
under my 98 troopy. looks like space behind the rear bumper. has anyone done this? I would like advice as to what tank would fit there.
Cheers
JAG
Read Full Thread...
Latest: 22 Sep 08 11:02 Replies:
3
FollowUps:
3
Views:
409
Hide
Kerrod : 14 Nov 07 11:37
has anyone installed an external tank in a Prado (98) and if so wher...
has anyone installed an external tank in a Prado (98) and if so where have they found the best location for it?
Read Full Thread...
Latest: 17 Nov 07 10:41 Replies:
4
FollowUps:
1
Views:
751
Hide
skippman : 27 Sep 07 17:42
have recently put a 60 lt tank on camper trailer with a 12 vt pump, ...
have recently put a 60 lt tank on camper trailer with a 12 vt pump, much more posher than a pump tap. wanting to know should i fill up
water tank
after every trip or is it OK to be empty and fill it up before i go away next time. is there anything i should put in the tank to stop any bateria??
Read Full Thread...
Latest: 28 Sep 07 20:26 Replies:
3
FollowUps:
2
Views:
1016
Hide
Rainman WA : 23 Jul 07 12:46
I have a 65 litre water container in the rear of my vehicle that cam...
I have a 65 litre water container in the rear of my vehicle that came with plastic Nylex fittings when I bought it. The tank is great, but I had misgivings about the sturdiness of the plastic fittings so changed them all over to air hose fittings.
I now have the hose running from the tank to a Nitto stop valve, and when I need water I simply plug in a hose pipe and the water runs out when I open the tap. It’s a great system that is very convenient.
The problem is, air hose fittings contain metal parts which eventually rust. After a recent two week trip up to the
Pilbara
, the Nitto stop valve started to rust and we had some difficulty clicking the hose pipe into place and stopping water running out when the pipe was removed.
The Nitto valve has water sitting inside it all the time, so after a while the ball bearings and rings start to rust resulting in things starting to stick when they shouldn’t.
So my question is, is there anything available on the market that can cope with water that has the same click on convenience as air hose fittings and is stronger than the plastic Nylex fittings?
I have asked at
places
like Enzed etc, but they only seem to sell air hose fittings and aren’t much help.
Read Full Thread...
Latest: 23 Jul 07 13:22 Replies:
3
FollowUps:
None
Views:
945
