connecting two Batteries

Submitted: Monday, Nov 11, 2013 at 21:20
ThreadID: 105085 Views:1633 Replies:3 FollowUps:11
This Thread has been Archived
I have an additional deep cycle Battery and was wondering how you can connect it to the one provided with the van when it was purchased thanks johno
Back Expand Un-Read 0 Moderator

Reply By: Member - Bruce C (NSW) - Monday, Nov 11, 2013 at 21:43

Monday, Nov 11, 2013 at 21:43
Hi Johno,

Just connect it positive to positive and negative to negative. In parallel in other words.

Just make sure there is a good 30 amp circuit breaker on the output side of the two batteries, when you connect them together, feeding all the lights and appliances and all should be well.

Keep the interconnecting battery cables as short as you can and it should work fine.
All you'll need then is a solar panel and regulator to keep them charged and your off to a flying start. Remember 100 watts of panel for each 100 amps of battery capacity as a starting guide.



Hope this helps,
Cheers Bruce.
At home and at ease on a track that I know not and
restless and lost on a track that I know. HL.

Lifetime Member
My Profile  Send Message

AnswerID: 521277

Reply By: Member - Bruce C (NSW) - Monday, Nov 11, 2013 at 21:55

Monday, Nov 11, 2013 at 21:55

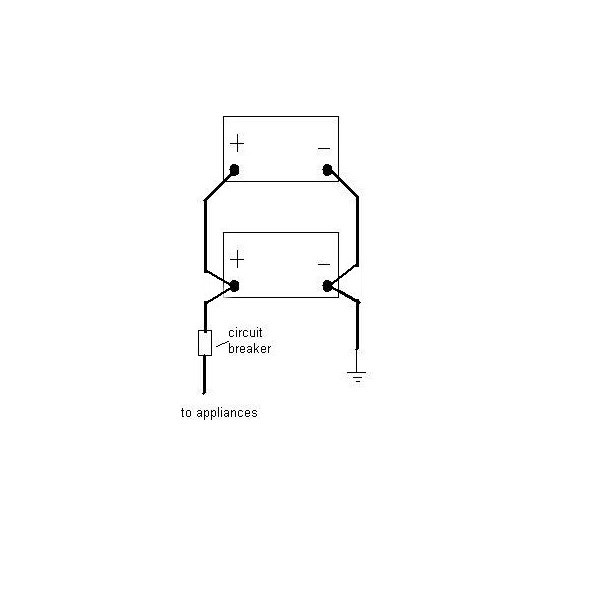

perhaps I should have drawn it like this to make it easier to pick up.



Cheers, Bruce.
At home and at ease on a track that I know not and
restless and lost on a track that I know. HL.

Lifetime Member
My Profile  Send Message

AnswerID: 521278

Follow Up By: Racey - Tuesday, Nov 12, 2013 at 08:25

Tuesday, Nov 12, 2013 at 08:25
Bruce, I would make one small change, take the negative lead (or positive) from the other battery. In doing so both batteries share the load and charge equally. Electricity being very lazy will take the shortest route, so the way you have drawn the connection the bottom battery will take the brunt of the load.

Cheers
0
FollowupID: 801986

Follow Up By: Member - KYLE S - Tuesday, Nov 12, 2013 at 14:09

Tuesday, Nov 12, 2013 at 14:09
Re Racey's followup.
Just as a casual observer and perhaps a bit dumb.
I don't understand what Racey means.
0
FollowupID: 801993

Follow Up By: olcoolone - Tuesday, Nov 12, 2013 at 14:17

Tuesday, Nov 12, 2013 at 14:17
What Racey is saying is correct but one of those things that make no noticeable difference in a dual battery system..... if it was a big battery bank of say 10+ batteries then yes it is advisable.
1
FollowupID: 801994

Follow Up By: Member - wicket - Tuesday, Nov 12, 2013 at 14:41

Tuesday, Nov 12, 2013 at 14:41
KYLE S

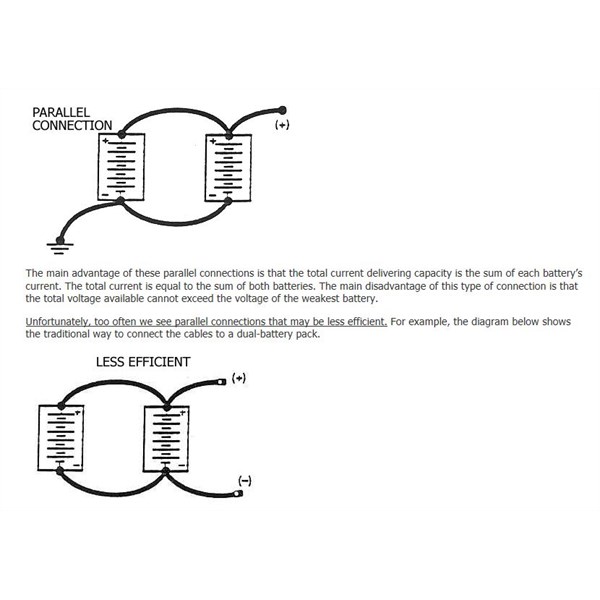

I think this is what Racey is referring to

0
FollowupID: 801998

Follow Up By: Andrew D. - Tuesday, Nov 12, 2013 at 14:42

Tuesday, Nov 12, 2013 at 14:42
The drawing is technically incorrect.
Cables should be taken off diagonally NOT as shown.

Olcooloone suggest some technical DC study for you.
Only a rank amateur with no DC expertise would parallel 2 batteries that way. Connecting batteries correctly is preschool of DC electrics.
0
FollowupID: 801999

Follow Up By: Racey - Tuesday, Nov 12, 2013 at 14:43

Tuesday, Nov 12, 2013 at 14:43
Spot on Guys
0
FollowupID: 802000

Follow Up By: Member - KYLE S - Tuesday, Nov 12, 2013 at 16:02

Tuesday, Nov 12, 2013 at 16:02
Thanks! I now understand however Andrew has got me confused?
I am interested as I have had a bank of 4 on my boat for 20 years and they have worked OK. Of course there have been 4 or so changes of them all over that time. Consequently I am curious to understand what "taken of diagonally" means in regard to battery banks???
0
FollowupID: 802002

Follow Up By: Member - wicket - Tuesday, Nov 12, 2013 at 16:42

Tuesday, Nov 12, 2013 at 16:42
KYLE

the top image in my post is what he is referring to , you can see they start off diagonally opposite each other.
0
FollowupID: 802005

Reply By: Allan B (Member, SunCoast) - Tuesday, Nov 12, 2013 at 17:54

Tuesday, Nov 12, 2013 at 17:54
The first response from Bruce C was entirely correct, particularly the advice to keep the interconnecting cables short.......... and I would add, of adequate gauge.

Then followed the occasionally expressed idealistic proposal of diagonal connection. As Olcoolone says, "it makes no noticeable difference in a dual battery system" ..... provided that the cabling is of adequate current carrying capacity.

For Andrew D to suggest that Olcoolone "needs some technical DC study" is both impertinent and uninformed. Olcoolone is no "rank amateur". He has considerable knowledge and experience in automotive electrical systems, particularly those with auxiliary battery setups.

As someone with more than 60 years of Electrical Engineering training and practical experience, I can state that the concept of diagonal connection is of no discernible value in a scheme that is adequately cabled. Its value exists only in the mind and expression of an idealistic theorist. Certainly it will work no worse than the direct alternative, but no better either, and only complicates the setup, particularly if the two batteries are separated by a metre or two.

Cheers
Allan

Member
My Profile  My Blog  My Position  Send Message

AnswerID: 521308

Follow Up By: ABR - SIDEWINDER - Tuesday, Nov 12, 2013 at 21:59

Tuesday, Nov 12, 2013 at 21:59
"Certainly it will work no worse than the direct alternative, but no better either, and only complicates the setup, particularly if the two batteries are separated by a metre or two."

"provided that the cabling is of adequate current carrying capacity."

I agree...

Regards

Derek from ABR
1
FollowupID: 802028

Follow Up By: Andrew D. - Wednesday, Nov 13, 2013 at 14:23

Wednesday, Nov 13, 2013 at 14:23
Allan B I very much stand by my comment of 'rank amateur'.
Sadly the lack of basic expertise and low education standards in Australia is what leads to all those that think they know or been correctly educated and haven't. Finding competent people in any field in Australia is a nightmare. When you look at the pathetic state of the RV industry and supposedly people with 60 years experience been clueless on something as basic as connecting batteries correctly in parallel tells you everything. Thankfully taught in the UK and USA for 30 years where the education and professionalism standards are on a significantly higher plane.
0
FollowupID: 802052

Follow Up By: Allan B (Member, SunCoast) - Wednesday, Nov 13, 2013 at 16:20

Wednesday, Nov 13, 2013 at 16:20
How on earth do we attract them?
Cheers
Allan

Member
My Profile  My Blog  My Position  Send Message

0
FollowupID: 802054
