Spare Wheel Lifter

Submitted: Saturday, Jul 13, 2013 at 11:09
ThreadID: 103224 Views:5854 Replies:9 FollowUps:6
This Thread has been Archived
My spare wheels tip the scales at 43 kilograms each which is a two-man lift and beyond the safe lifting capability of many of us.

After seriously injuring my back a little over a year ago, I put my mind to coming up with some sort of wheel lifter that would allow me to change wheels un-aided and continue my 4WD activities.

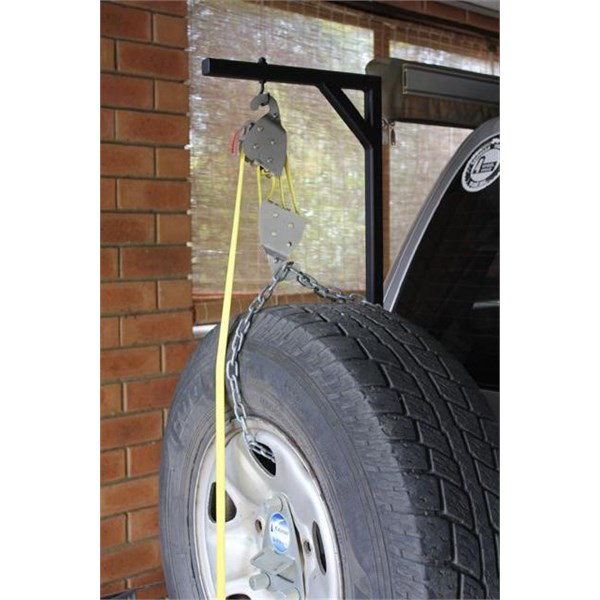

The device I came up with is pictured below.


It plugs straight into a standard Kaymar wheel carrier, so no major surgery is required to use it.

As shown below it can be rotated through 180 degrees to lift other heavy items up to tailgate level if required.



If there is sufficient interest I will put the construction details in a blog.
If you relax at a faster pace you can get more relaxation in for a given time.
Regards Rob

Lifetime Member
My Profile  My Blog  Send Message

Back Expand Un-Read 3 Moderator

Reply By: pop2jocem - Saturday, Jul 13, 2013 at 11:26

Saturday, Jul 13, 2013 at 11:26
An excellent bit of kit Rob. I carry my spares (2) on the roof rack of my 75 series and for the same reason as you, using my back as a crane when a dopey young bloke, I wouldn't attempt to lift them up there by myself. I made up a similar thing as you have done but using the smallest boat winch I could get my hands on. Handy to lift anything onto the roof rack.
Mine doesn't look anywhere near as professional as yours but does the job.
May I ask what you used as the "winch"? Looks a bit less bulky than what I have.

Cheers
Pop
AnswerID: 514729

Follow Up By: Member - Rob D (NSW) - Saturday, Jul 13, 2013 at 11:33

Saturday, Jul 13, 2013 at 11:33
It is a very clever block and tackle using flat webbing straps. See the link below.
Jack Strap Website.
If you relax at a faster pace you can get more relaxation in for a given time.
Regards Rob

Lifetime Member
My Profile  My Blog  Send Message

1
FollowupID: 793826

Follow Up By: Member - bbuzz (NSW) - Saturday, Jul 13, 2013 at 15:51

Saturday, Jul 13, 2013 at 15:51
Good idea but if I don't have a Kmar slot I would need to locate the pole in something else.

I have a more basic lift on my roof rack that looks after my spares but needs a bit of guiding to get it to work.

Your idea has more merit for me too.

bill
Bill B

Member
My Profile  Send Message

0
FollowupID: 793843

Reply By: Daisy G - Saturday, Jul 13, 2013 at 11:57

Saturday, Jul 13, 2013 at 11:57
Very smart ideas, actually you are using the Pulley principle to move weight over a distance. The pulley and levers allow a single person to move weights that a human would be incapable of lifting without the interention of such tools.
AnswerID: 514731

Reply By: MEMBER - Darian, SA - Saturday, Jul 13, 2013 at 11:57

Saturday, Jul 13, 2013 at 11:57
Great idea Rob - did far too much stupid lifting when I was younger and now my lower back is useless - the only way I can get my spare up onto the Kaymar is via a number of staged step-ups at home (rolling it from one to the next step-up)..... not a practical solution when on a trip (if I had a flat while away, I'd take the spare off the Kaymar and put the flat underneath in the factory carrier... but no use if I carry two spares). I'm interested in your design..... if I could use my existing Hitchmaster kit as the winch, that would be neat. In fact, I said to that Hitchmaster bloke a few years ago that his device would be a whole lot more useful IF there was a moveable elevated lift point to sling it from - it could be placed in a number of spots on a travel rig, for practical purposes....the general idea of portable winching on light vehicles (for the disabled - heavy items in utes etc.) is established but simple, cheap and easily stowed hardware for bush travel has great merit.
AnswerID: 514732

Follow Up By: Member - mick C (NSW) - Saturday, Jul 13, 2013 at 12:43

Saturday, Jul 13, 2013 at 12:43
Great Set up Rob , would be interested to see it in a blog
Thanks in anticipation
Mick C
Poppa Bear

Lifetime Member
My Profile  Send Message

1
FollowupID: 793833

Follow Up By: Member - ACD 1 - Saturday, Jul 13, 2013 at 14:08

Saturday, Jul 13, 2013 at 14:08
Great idea Rob, thanks for sharing. Would love to see you write a blog or even a share file on the construction and use.

Darian, I can easily see how the hitch master would work well with Rob's setup. Great thinking

Cheers

Anthony
VKS 3539
Work - a 40 hour interuption to my weekend!
Too many places - too little time

Member
My Profile  My Position  Send Message

1
FollowupID: 793838

Reply By: Tim HJ61 (WA) - Saturday, Jul 13, 2013 at 23:35

Saturday, Jul 13, 2013 at 23:35
The website for the Jack Strap
http://jackstrap.net.au/index.php
doesn't have any purchase information. Where'd'ya get it?

Be a nice addition to the Exploroz shop maybe.....

Tim
AnswerID: 514765

Follow Up By: Member - Rob D (NSW) - Sunday, Jul 14, 2013 at 09:49

Sunday, Jul 14, 2013 at 09:49
Hi Tim,

You have to email or phone Tom.

Contact information in the 'Contact Us' tab of their website.

I agree it would be a good product for the ExplorOz shop to carry.

If you relax at a faster pace you can get more relaxation in for a given time.
Regards Rob

Lifetime Member
My Profile  My Blog  Send Message

0
FollowupID: 793889

Reply By: newlywed1311 - Sunday, Jul 14, 2013 at 10:37

Sunday, Jul 14, 2013 at 10:37
The creativity and capacity of some people amaze me. Well done Rob.
AnswerID: 514775

Reply By: Sandman - Monday, Jul 15, 2013 at 11:42

Monday, Jul 15, 2013 at 11:42
Appears Jackstrap is too popular....

Bandwidth Limit Exceeded

The server is temporarily unable to service your request due to the site owner reaching his/her bandwidth limit. Please try again later.
AnswerID: 514828

Reply By: Member - Rob D (NSW) - Monday, Jul 15, 2013 at 18:14

Monday, Jul 15, 2013 at 18:14
Fabrication details published as a blog today 15 July.

Happy fabricating.
If you relax at a faster pace you can get more relaxation in for a given time.
Regards Rob

Lifetime Member
My Profile  My Blog  Send Message

AnswerID: 514841

Reply By: Colcam42 - Monday, Jul 29, 2013 at 11:22

Monday, Jul 29, 2013 at 11:22
Hello Rob and others, re the wheel lift, I bought one of these this weekend to help lift spares onto the roof-rack, now all I need is a sky-hook,



Rope Hoist

Cheers,
AnswerID: 515529

Reply By: Member - PJR (NSW) - Monday, Jul 29, 2013 at 12:15

Monday, Jul 29, 2013 at 12:15
Got mine and it works a treat. John Rodgers and from memory he supplied the metal and welded it up for just $50. Not bad when you consider how it saves my back.

The bag that comes with the JackStrap also serves to carry a bit of chain etc.

I am going to make up some brackets to store it on the front face of the drawer system under the back of the second row of seats. Easy access.

Than Rob

Phil

AnswerID: 515534

Follow Up By: Member - PJR (NSW) - Monday, Jul 29, 2013 at 12:28

Monday, Jul 29, 2013 at 12:28
Lets try again and without stupid mistakes. I need an editor. I even read it before submitting.

Hi Rob

Got mine and it works a treat. John Rodgers supplied the metal and welded it up and from memory, for just charged $50. Not bad when you consider how it saves my back. He is the bloke who made the steel side steps.

The bag that comes with the JackStrap also serves to carry a bit of chain etc.

I am going to make up some brackets to store it on the front face of the drawer system under the back of the second row of seats. Easy access.

Thanks Rob

Phil
0
FollowupID: 794821
