79 series radio

Submitted: Friday, Nov 06, 2015 at 20:15
ThreadID: 130820 Views:8761 Replies:2 FollowUps:6
This Thread has been Archived
Does anyone at the slightest chance have a diagram of the 79 series radio wiring?
Back Expand Un-Read 0 Moderator

Reply By: Bob Y. - Qld - Friday, Nov 06, 2015 at 20:37

Friday, Nov 06, 2015 at 20:37
Which 79 series, Beastly? 6 cyl or V8?

Recently swapped original unit on an '02 model to a Sony head unit, without too many dramas.

Bob

Seen it all, Done it all.
Can't remember most of it.

Lifetime Member
My Profile  My Blog  My Position  Send Message

AnswerID: 592415

Follow Up By: equinox - Friday, Nov 06, 2015 at 20:41

Friday, Nov 06, 2015 at 20:41
Hi Bob,
Did you use original speakers?
If not where did you put new speakers.

Cheers
Alan

Looking for adventure.
In whatever comes our way.
"Outback Yonder"


Lifetime Member
My Profile  My Blog  Send Message

0
FollowupID: 860600

Follow Up By: beastly666 - Friday, Nov 06, 2015 at 20:51

Friday, Nov 06, 2015 at 20:51
Hi Bob. It's the v8 with the metal dash in it
0
FollowupID: 860601

Follow Up By: Bob Y. - Qld - Friday, Nov 06, 2015 at 20:56

Friday, Nov 06, 2015 at 20:56
G'day Alan,

Yes I did, though am adding a 2nd pair in the doors to utilise the Sony's 4 channel output.

Few years ago, I replaced the original "in the dash units" as one had had enough. Used 4" units from Jaycar. These speakers seem to handling the extra power okay, and sound is good.

Bob

Seen it all, Done it all.
Can't remember most of it.

Lifetime Member
My Profile  My Blog  My Position  Send Message

1
FollowupID: 860602

Follow Up By: Bob Y. - Qld - Friday, Nov 06, 2015 at 21:15

Friday, Nov 06, 2015 at 21:15
Don't know that I can help you, Beastly, as I've only had my V8 about 5 weeks, and haven't ripped the dash open yet. :-)

Before I started the refit mentioned above I googled "Landcruiser stereo wiring" or words to that effect, and got a couple of options to follow. Think most examples were of 100 series.

Did copy a couple as below:

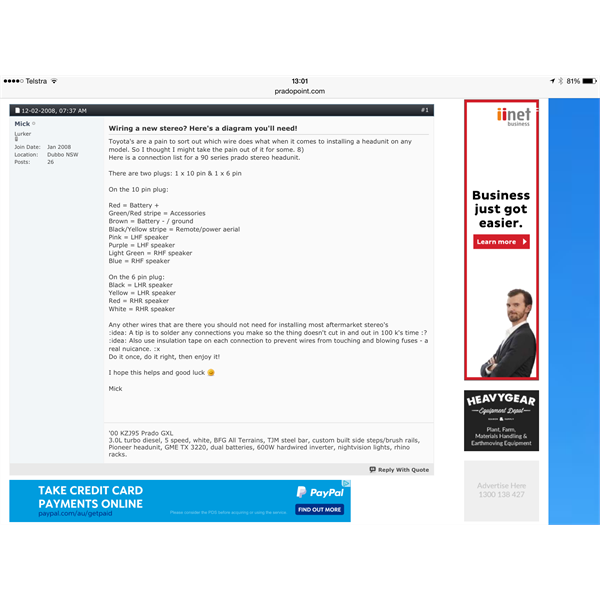

I found the 2nd image to be the most useful, and colours matched with my '02 model. I had bought numerous Toyota/Sony adapter plugs/looms, but none of them would match properly, so I just slowly soldered & hearshrunk every join. Sounds alright with no distortion at all.

If I can help anymore, yell out,
Bob

Seen it all, Done it all.
Can't remember most of it.

Lifetime Member
My Profile  My Blog  My Position  Send Message

1
FollowupID: 860603

Follow Up By: beastly666 - Saturday, Nov 07, 2015 at 13:45

Saturday, Nov 07, 2015 at 13:45
Sadly it doesn't work for my 79 :(
0
FollowupID: 860621

Reply By: AlbyNSW - Saturday, Nov 07, 2015 at 08:22

Saturday, Nov 07, 2015 at 08:22
I just used a lume adapter plug to suit the radio I was fitting and worked fine
Repco Etc sell them
Had to wire the serial power separately
AnswerID: 592428

Follow Up By: beastly666 - Saturday, Nov 07, 2015 at 13:45

Saturday, Nov 07, 2015 at 13:45
See the wiring in mine was already pretty much crap from the time I brought it. It had a proper toyota stereo in it but that never worked :(
0
FollowupID: 860620
