Mounting bracket for Barrett 910 Auto Tune Antenna.

Submitted: Monday, Jul 17, 2017 at 00:14
ThreadID: 135268 Views:2953 Replies:10 FollowUps:2
This Thread has been Archived
I am wanting to manufacture, have manufactured, or buy a mounting bracket for a Barrett 910 Auto Tune Antenna. I want to use the rear door mounted spare wheel mounting to secure the bracket. My vehicle is a 120 series Prado. I would appreciate any advice or suggestions. The method of cable entry into the actual rear door is another point I am interested in. I am located in Wanneroo WA.
Charlsie

Member
My Profile  Send Message

Back Expand Un-Read 0 Moderator

Reply By: Mick O - Monday, Jul 17, 2017 at 02:16

Monday, Jul 17, 2017 at 02:16

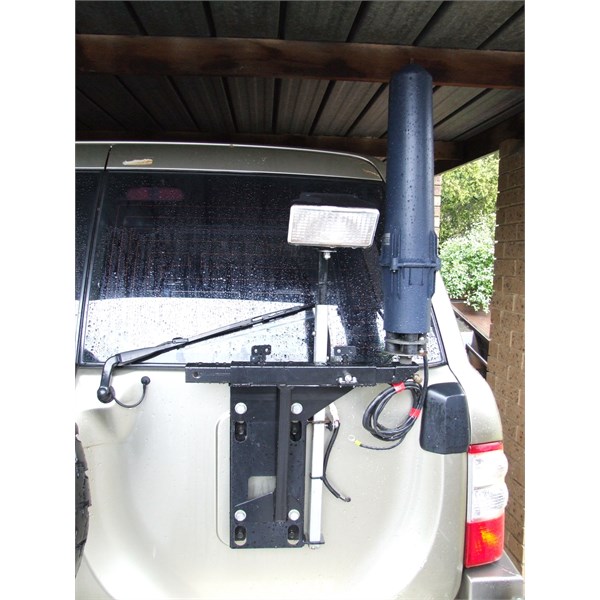

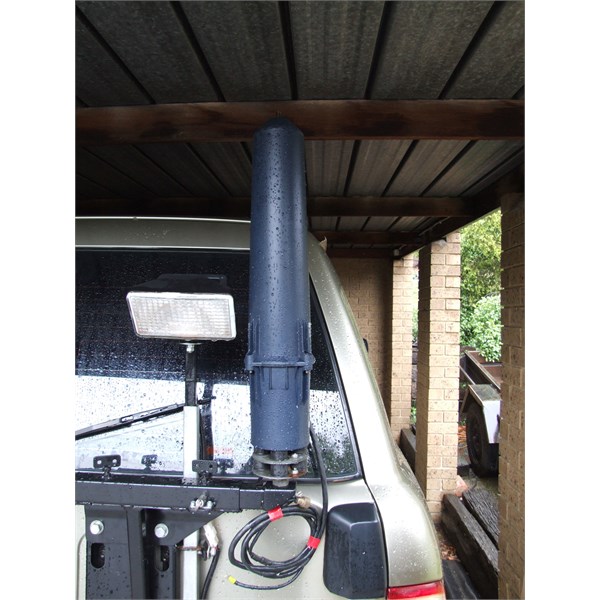

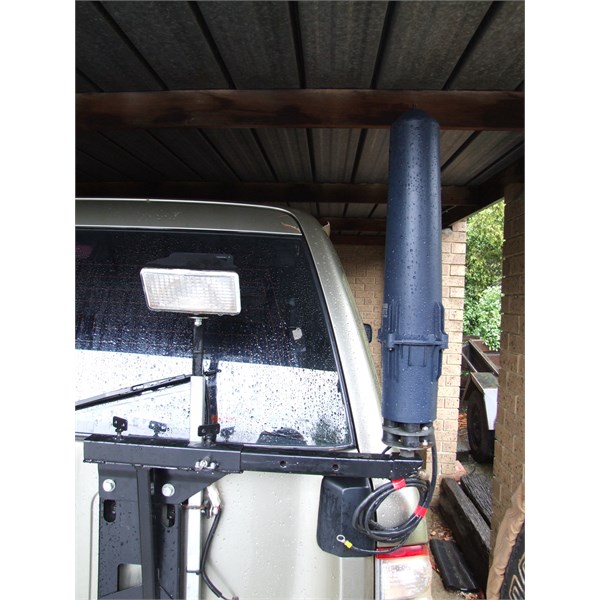

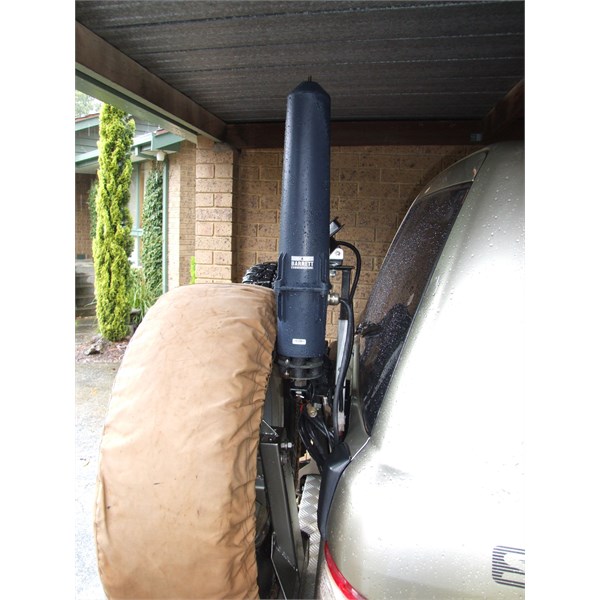

Had a custom mount made for mine on the rear door of the Patrol. May give you a few ideas.

It was made to slide so it could be extended past the edge of the vehicle to reduce interference.

Brown Davis in Bayswater made it utilising existing rear wheel mount. Cables was run into the vehicle through a grommetted hole in the rear door.



''We knew from the experience of well-known travelers that the
trip would doubtless be attended with much hardship.''
Richard Maurice - 1903

Lifetime Member
My Profile  My Blog  Send Message

AnswerID: 612555

Follow Up By: Allan B (Sunshine Coast) - Tuesday, Jul 18, 2017 at 11:14

Tuesday, Jul 18, 2017 at 11:14
.
Hey Mick, I thought that so long as the whip section was above the roofline all was OK.
Does that "sideways sliding" technique make a difference?
No challenge....... just seeking knowledge.
Cheers
Allan

Member
My Profile  My Blog  My Position  Send Message

0
FollowupID: 882856

Reply By: Member - Phil G (SA) - Monday, Jul 17, 2017 at 10:21

Monday, Jul 17, 2017 at 10:21
Electric Bug in Adelaide used to sell the bracket you need to fit a 910 aerial to the 120 series Prado. They were simple, lightweight and strong and still allowed the spare tyre to be mounted on the original bracket on the door.
You could call them and ask.

The brackets might have been made by this company in Salisbury:
https://www.truelocal.com.au/business/australian-4wd-storage-and-accessories/salisbury-plain
AnswerID: 612558

Reply By: Member - Charlsie - Monday, Jul 17, 2017 at 10:26

Monday, Jul 17, 2017 at 10:26

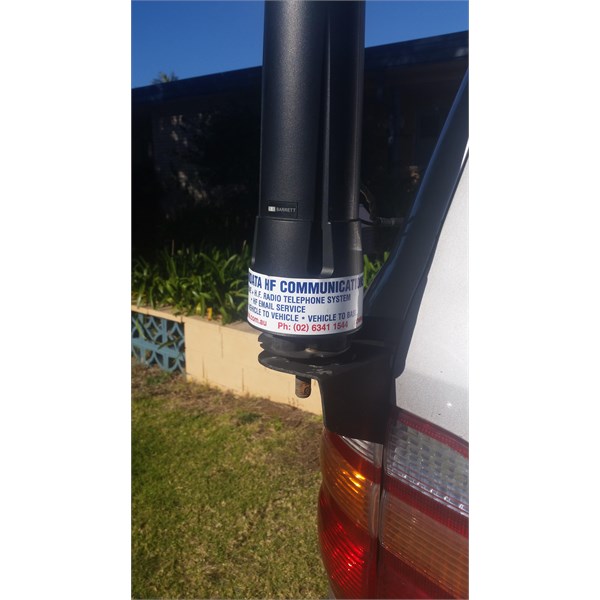

Thanks Mick O for those great pics, certainly is an elaborate set up you have, food for thought.
Charlsie

Member
My Profile  Send Message

AnswerID: 612559

Reply By: Member - Charlsie - Monday, Jul 17, 2017 at 10:34

Monday, Jul 17, 2017 at 10:34
Thanks Phil, will follow up.
Charlsie

Member
My Profile  Send Message

AnswerID: 612560

Reply By: RMD - Monday, Jul 17, 2017 at 13:53

Monday, Jul 17, 2017 at 13:53
Perhaps I am wrong, but since the aerial is above the body work anyway, having it slide doesn't make much difference and any ground plane effect for transmission to the forward direction would/may be reduced with the slide out feature activated.

AnswerID: 612564

Reply By: Member - John and Lynne - Monday, Jul 17, 2017 at 16:26

Monday, Jul 17, 2017 at 16:26
Charlsie, Be aware that these antennas are regarded as fair game by some of our community. A mate of mine had his antenna removed from the rear of his Patrol while he and his wife slept in a tent along side the vehicle. This was up at the Cape. So in your design, ensure you can add a padlock or something to maximise the effort required by those needing your antenna. John
John & Lynne

Member
My Profile  Send Message

AnswerID: 612567

Reply By: Tim F3 - Tuesday, Jul 18, 2017 at 10:39

Tuesday, Jul 18, 2017 at 10:39

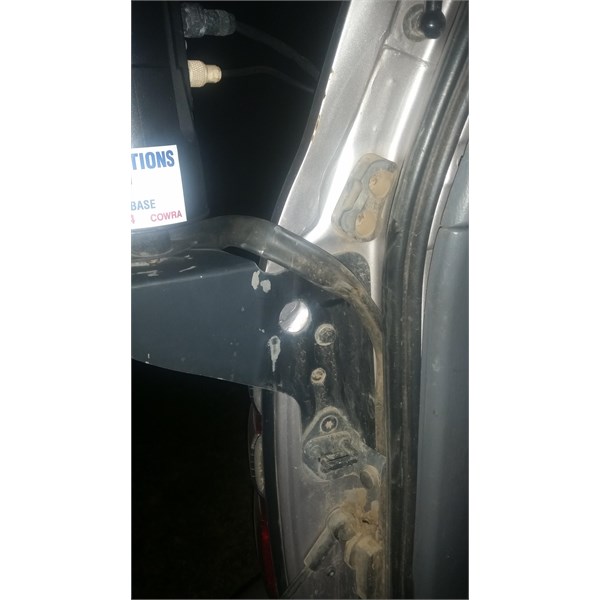

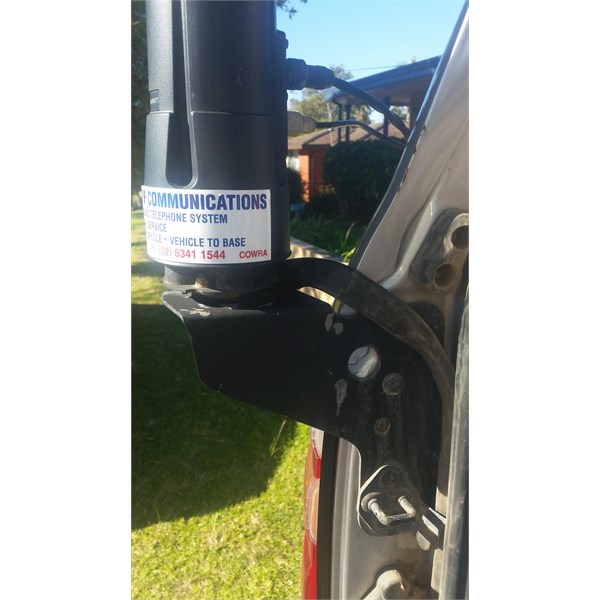

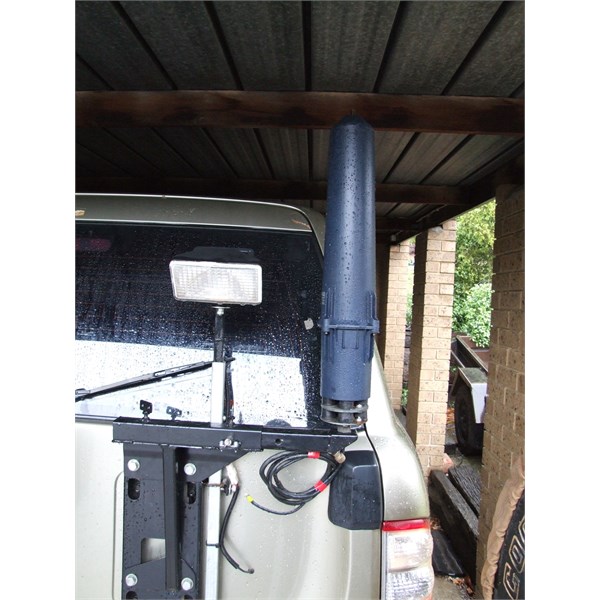

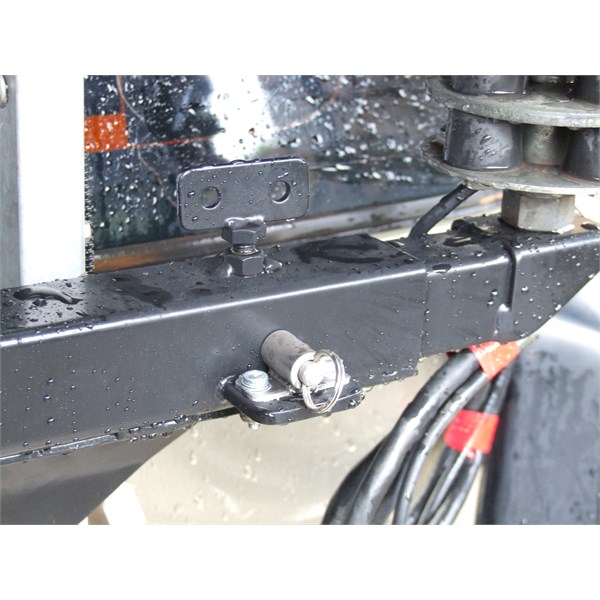

This is how mine attached , note if you use braided copper wire for the earth it is thin enough to fit past the door rubber.
AnswerID: 612583

Reply By: Member - Charlsie - Tuesday, Jul 18, 2017 at 15:12

Tuesday, Jul 18, 2017 at 15:12
Tim, obviously it works for you but how do you get the cabling into the vehicle. Are these brackets available commercially? Thanks for the pics.
Charlsie

Member
My Profile  Send Message

AnswerID: 612591

Follow Up By: Tim F3 - Tuesday, Jul 18, 2017 at 17:53

Tuesday, Jul 18, 2017 at 17:53

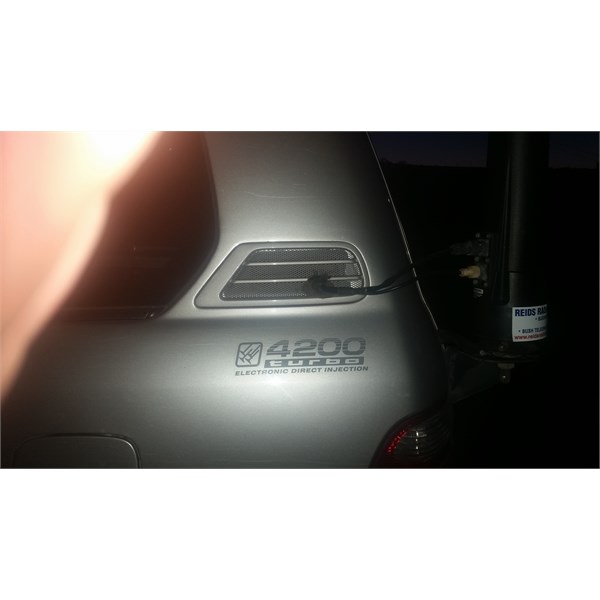

Charlsie i drilled a hole in the plastic air vent and passed it through . The air vent can cheaply and easily be replaced at time of sale.
But i should have done a neater job and used a rubber grommet or electrical flange etc.
Hope the photos help.
The bracket was commercially avail from south aust but may not be know.
I can do better photos and supply dimensions of you supply email.
0
FollowupID: 882885

Reply By: Dean K3 - Tuesday, Jul 18, 2017 at 20:09

Tuesday, Jul 18, 2017 at 20:09
Kaymar make them had idea somebody in Perth made them seems not

http://lakecomm.com.au/hfant&acc.html

Maybe go direct to kaymar website instead of via lake comm

You'd think I would know how does this stuff after 8 years of radio supply to mines site -nope getting too old or out of game for too long
AnswerID: 612605

Reply By: Member - Charlsie - Thursday, Jul 20, 2017 at 11:27

Thursday, Jul 20, 2017 at 11:27
Thanks Dean.
Charlsie

Member
My Profile  Send Message

AnswerID: 612637
