Codan 9323: dimensions of remote head?

Submitted: Friday, Dec 07, 2012 at 22:28

ThreadID: 99391 Views:3751 Replies:3 FollowUps:1

This Thread has been Archived

yagon

I'd like to install a codan 9323 into my gu patrol in the top centre dash storage compartment, but I can't find the dimensions published anywhere. Does anyone know the size of the codan 9323?

Back Expand Un-Read 0 Moderator Share

Reply By: Nomadic Navara - Friday, Dec 07, 2012 at 23:33

Friday, Dec 07, 2012 at 23:33

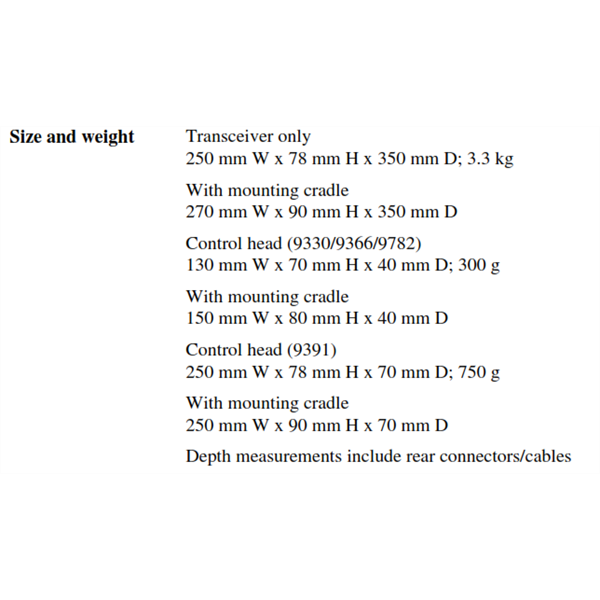

I took this out of the HF SSB Transceiver 9323/9360/9390/9780 Technical Service Manual - you can pick it up from here

I don't know which of the heads your transceiver has.

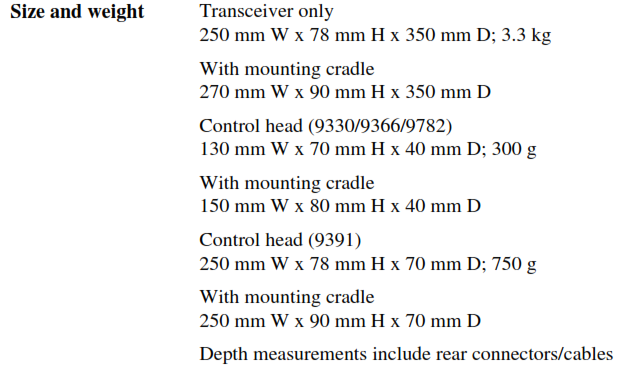

Dimensions

PeterD
Retired radio and electronics technician

Lifetime Member
My Profile Send Message

AnswerID: 499995

Reply By: The Explorer - Saturday, Dec 08, 2012 at 03:04

Saturday, Dec 08, 2012 at 03:04

Hi

Using calipers the height at widest point is 74.1 mm (unit is wider at back than front by ~2mm). This measurement is also complicated by the fact that the wires exit at an angle from the centre of the bottom back edge of the head unit so you may need to take this into account.

Maximum width is 130.9 mm, at some raise ridges on either side for normal mounting bracket.

Cheers
Greg

I sent one final shout after him to stick to the track, to which he replied “All right,” That was the last ever seen of Gibson - E Giles 23 April 1874

Lifetime Member
My Profile My Blog Send Message
Moderator

AnswerID: 499997

Follow Up By: The Explorer - Saturday, Dec 08, 2012 at 04:16

Saturday, Dec 08, 2012 at 04:16

...PS : Depth of unit body is 41.1 mm (excluding knobs)

Cheers
Greg

I sent one final shout after him to stick to the track, to which he replied “All right,” That was the last ever seen of Gibson - E Giles 23 April 1874

Lifetime Member
My Profile My Blog Send Message
Moderator

FollowupID: 775988
