One Year old van battery connections and workmanship.

Submitted: Monday, Dec 17, 2012 at 16:34

ThreadID: 99522 Views:3003 Replies:5 FollowUps:2

This Thread has been Archived

GEMAC Solar and Power

Hi All,

I have just completed an inverter install in a van manufactured in SA.
The following photos show the standard of workmanship for this manufacturer.

The batteries had been relocated by the manufacturer earlier this year.
2 x 120AH located to the rear of the van. Where the batteries were located is where I found these connections.
It must be noted that there was NO FUSE or Circuit Breaker between the batteries and the connections shown.

There seems to be no Q.A. done on the 12VDC side of things and this is where the most current is able to flow. The four cables from the lug goto the Fridge, No Fuse Protection, The Anderson Plug no protection, the small CB Box and the supply from the Solar Panel regulator.

All this loading was taken on the 2.5mm overall diameter red wire that was not even crimped correctly.
Fire hazard ??? I leave it to you to decide.

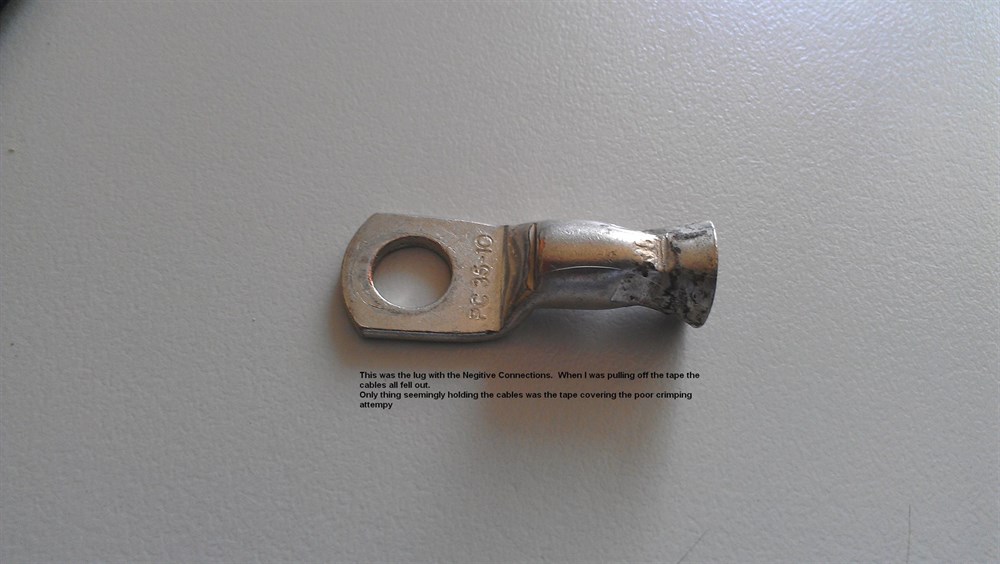

The photo of the lug only was connected in a similar way. This was the Neg side of things. The 4 cables on this lug just pulled out of the lug as I was trying to unravel the tape hiding the bare metal.

At this stage I will not name the van manufacturer until I have spoken to the manufacturing association of Australia.

We have all spoken and talked about Q.A. on here and just how bad it is.
I recall last week Rebecca H saying and I will quote
"Few concerns with some finishes and they forgot to do a few things so fingers crossed they sort it out before it is shipped next week."
How do manufacturers just FORGET????

My van had a hot dip chassis as opposed to the standard one because the manufacturer forgot I had asked for a duragalve one?
And he wanted to charge me extra too as he tried to explain it was my fault for "not Reminding Him"

So All I am able to say is Be aware of BAD Workmanship by unqualified persons.

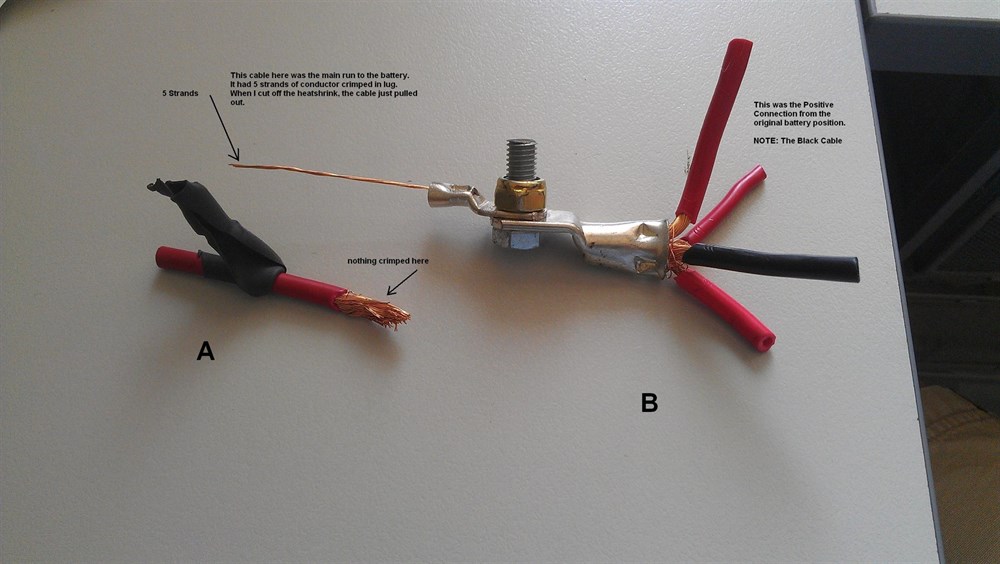

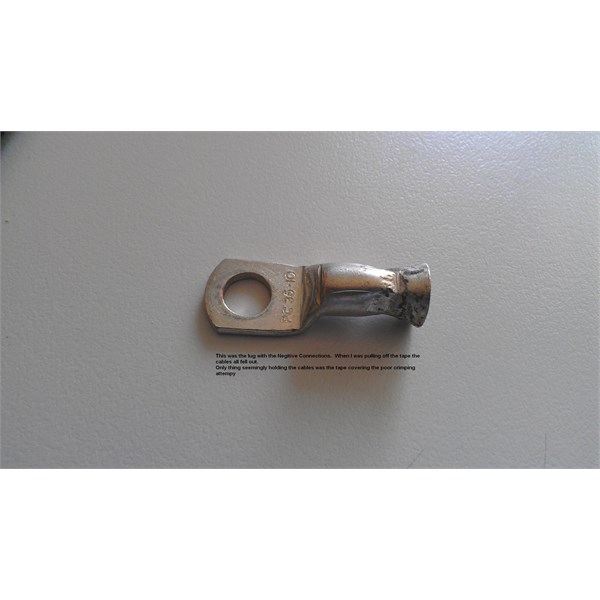

Battery Connection 2

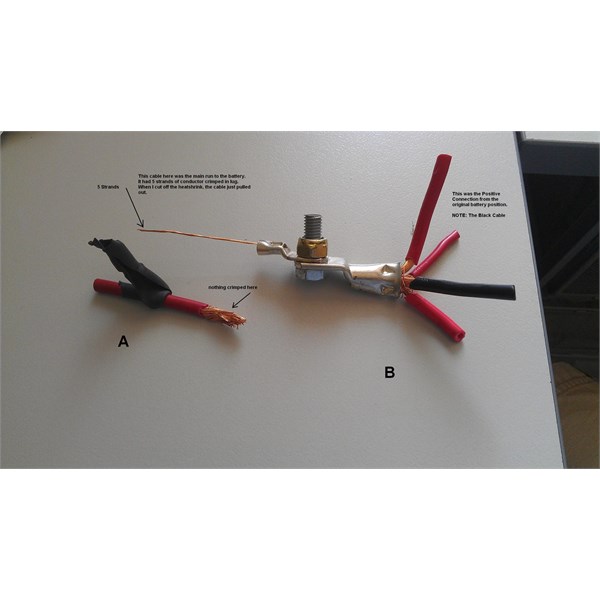

Battery connection 1

Regards
Geoff
